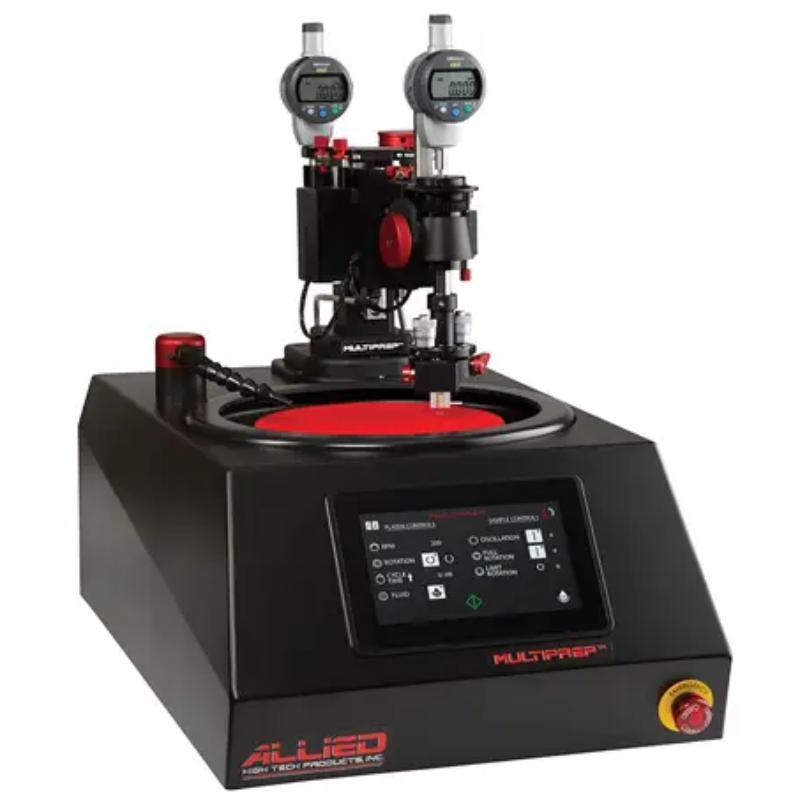

MultiPrep™ Polishing System – 8″

MultiPrep™ Polishing System - 8"

The MultiPrep™ System enables precise semiautomatic sample preparation of a wide range of materials for microscopic (optical, SEM, FIB, TEM, AFM, etc.) evaluation.

Capabilities include parallel polishing, angle polishing, site-specific polishing or any combination thereof. It provides reproducible results by eliminating inconsistencies between users, regardless of their skill.

Dual micrometers (pitch and roll) allow precise sample tilt adjustments relative to the abrasive plane. A rigid Z-indexing spindle maintains the predefined geometric orientation throughout the grinding/polishing process. Digital indicators enable quantifiable material removal, which can be monitored real-time, or preset for unattended operation. Variable speed rotation and oscillation maximize the use of the entire grinding/polishing disc and minimize artifacts. Adjustable load control expands its capability to handle a range of small (delicate) to large samples.

MultiPrep Positioning Head Features

  • Front digital indicator to display real-time material removal (sample advancement), 1 µm resolution
  • Precision spindle that indexes the sample perpendicular to the platen, and can rotate simultaneously
  • Dual axis, micrometer controlled angular positioning of the sample (pitch and roll): +10°/-2.5° range (0.02° increments)
  • Rear digital indicator to display vertical positioning (static) with zeroing function, 1 µm resolution
  • Full or limited automatic sample rotation with 8 speeds
  • Cam-locking system that eliminates the need for tools and allows for precise repositioning of fixtures
  • Variable sample load: 0-600 g (100 g increments)
  • Designed & manufactured by Allied in the USA

Grinder/Polisher Features

  • Variable platen speed: 5-350 RPM (5 RPM increments)
  • Digital timer and tachometer
  • 7" color LCD touchscreen with keypad entry to control all functions
  • Clockwise/counterclockwise platen rotation
  • Seamless integration with optional AD-5™ Fluid Dispenser for automatic operation
  • Electronic coolant control with adjustable valve
  • Powerful, quiet 0.7 HP (535 W) Brushless DC motor that provides constant high torque output throughout the speed range Stable RIM, aluminum and stainless steel construction
  • Molded one-piece corrosion and impact resistant cover
  • Overflow diversion protects internal components
  • Designed & manufactured by Allied in the USA
  • CE Compliant for EU
  • Two (2) year warranty
